KACPL — PRECISION MANUFACTURING
Our Facility
24+ machines across CNC, grinding, induction, testing and quality control — ISO 9001:2015 certified.
Machines
Instruments
Categories
ISO
Certified
CNC Machines 8 machines
Vertical machining centres, auto-lathes, turning and polygon milling
● CNC Machining Centres & Lathes
| Sl | Description | Qty |
|---|---|---|
| 1 | VMC LMW JV84 (with 4+1 axis tilting bed) | 1 |
| 2 | CNC SW188 type auto-lathe (max dia 26) | 2 |
| 3 | VMC Mori Seki with pallet changer | 1 |
| 4 | VMC LMW Rodi 40 | 1 |
| 5 | VMC Makino S33 with pallet changer | 2 |
| 6 | CNC turning machines — 6 nos LMW SmartTurn, 1 no LMW Pilatus, 1 no Yang | 8 |
| 7 | Polygon milling machine | 2 |
| 8 | 8-spindle automat dia 25 capacity | 2 |
● CNC Cutting
| Sl | Description | Qty |
|---|---|---|
| 1 | Circular saw cutting machine (SOCO SA-77NC) | 1 |
Grinding Machines 6 machines
Cylindrical and centreless grinding — HMT, Berlin and others
● Cylindrical Grinding
| Sl | Description | Qty |
|---|---|---|
| 1 | Cylindrical grinding machine (HMT K130 / 300mm length) | 1 |
| 2 | Cylindrical grinding machine (HMT K130 / 500mm length) | 1 |
| 3 | ID grinding Jung Berlin – D14 | 2 |
● Centreless Grinding
| Sl | Description | Qty |
|---|---|---|
| 1 | CNC centreless grinding dia 50 capacity | 1 |
| 2 | Centreless grinding dia 75 capacity | 2 |
| 3 | Centreless grinding dia 200 capacity | 3 |
Induction & Manual Machines 7 machines
Heat treatment, hardening, tapping, threading and turning
| Sl | Description | Qty |
|---|---|---|
| 1 | Induction hardening machine (60 kW & 40 kW) | 2 |
| 2 | Tempering oven (24 kW, 400°C) | 1 |
● Centreless Grinding
| Sl | Description | Qty |
|---|---|---|
| 1 | Geedeeweiler RDU 38 with turret head | 2 |
| 2 | Drilling machine ½” & 10mm each | 2 |
| 3 | Tapping machine M12 capacity | 1 |
| 4 | Thread rolling — Praga-512 | 1 |
| 5 | Centre lathe 4½” | 2 |
Photo Gallery 18 entries
Machine photographs, parts produced, and facility overview

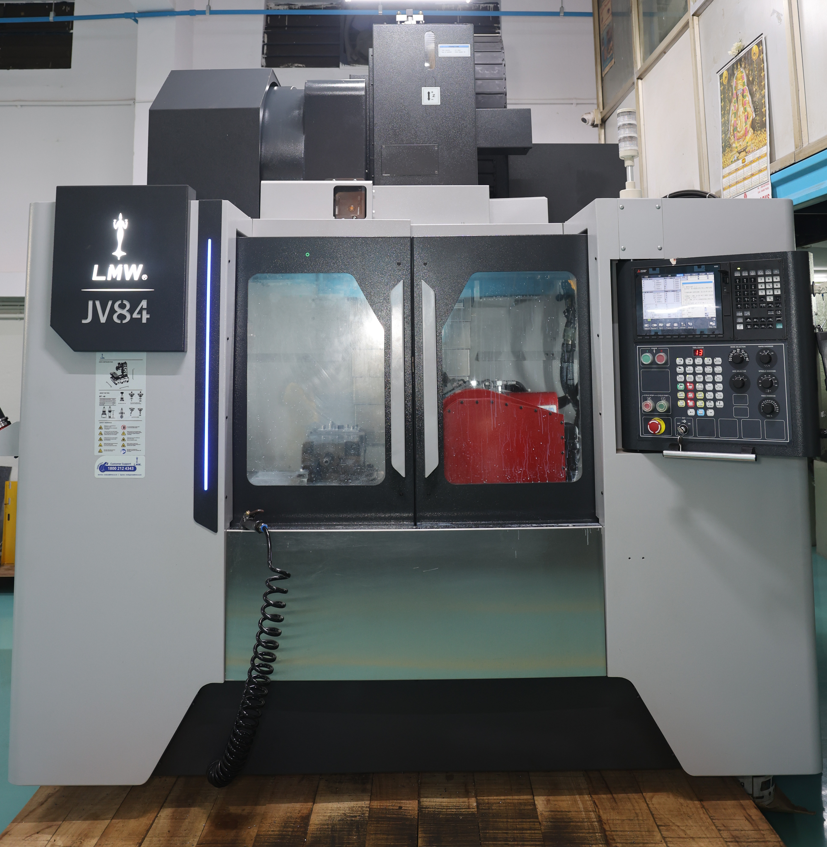

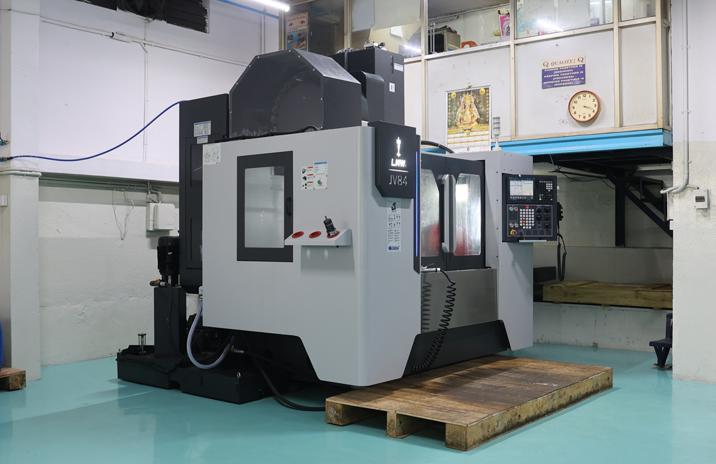

Milling Machine — LMW JV84 with UCAM Tilting Table 4+1 Axis
Latest addition to the CNC machining centre floor. 5-axis simultaneous machining capability for complex precision components.

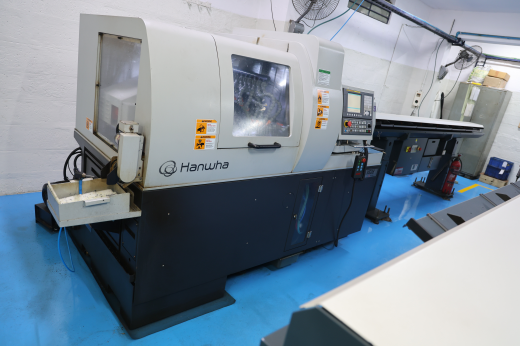

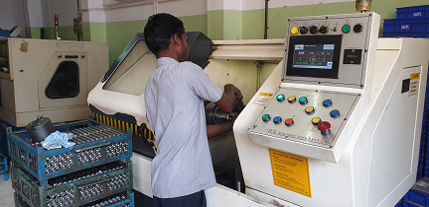

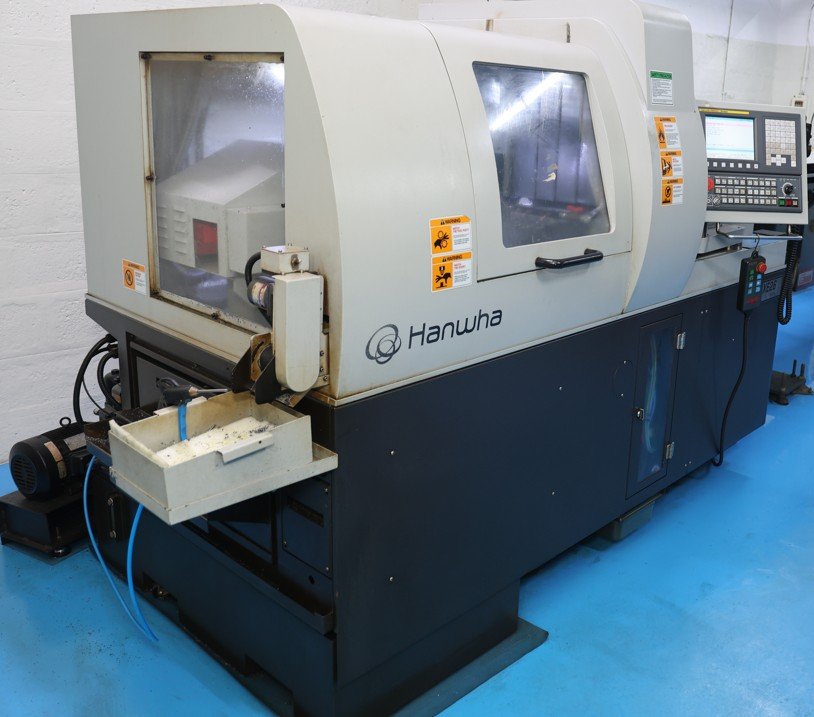

CNC Sliding Head Machine – Hanwa XE26
CNC · Swiss-type turning

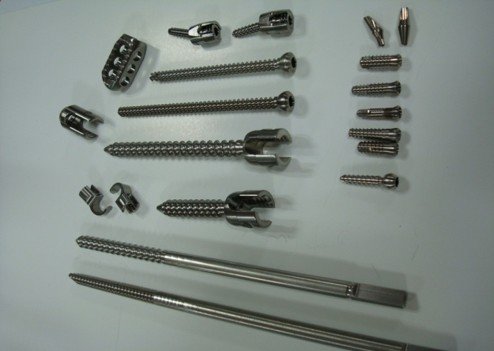

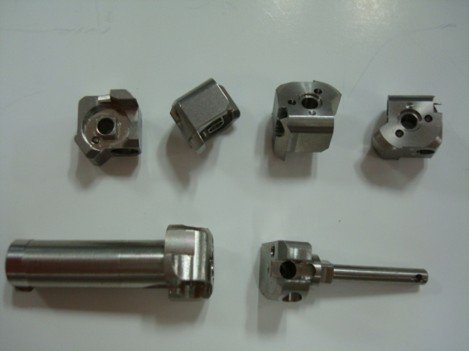

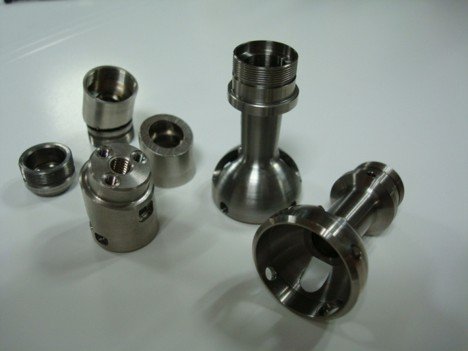

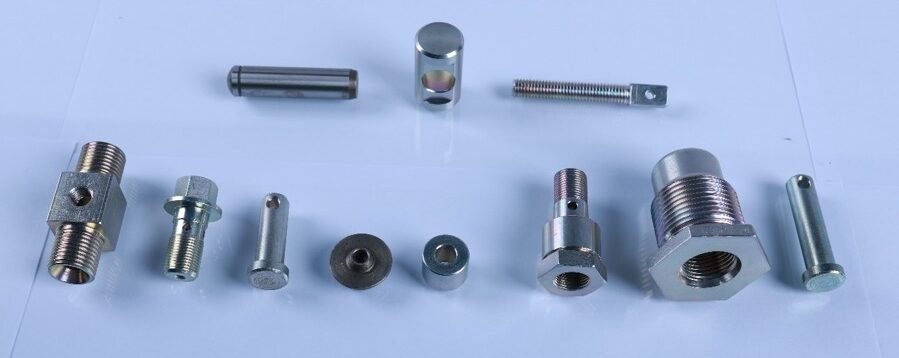

Parts Done on CNC Sliding Head – Hanwa XE26
Sample output · Finished components

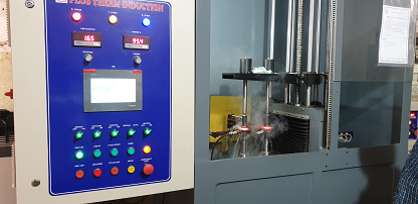

Induction Hardening
Heat treatment · Surface hardening

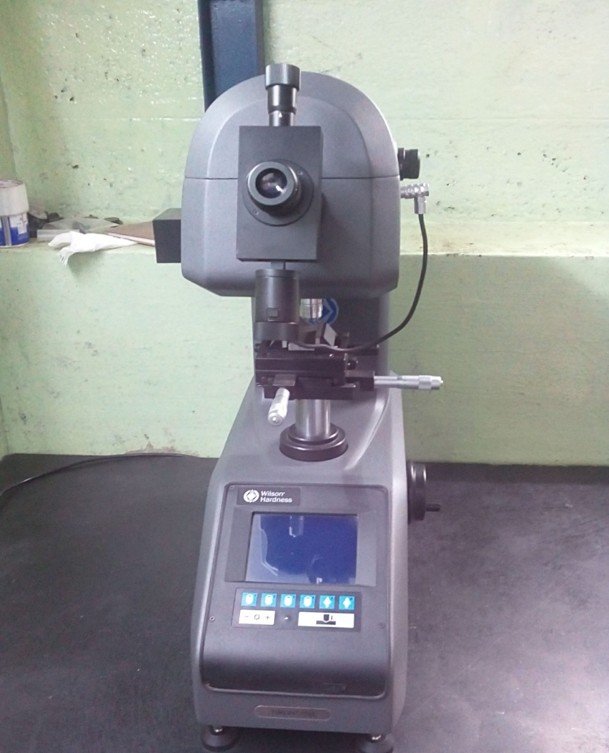

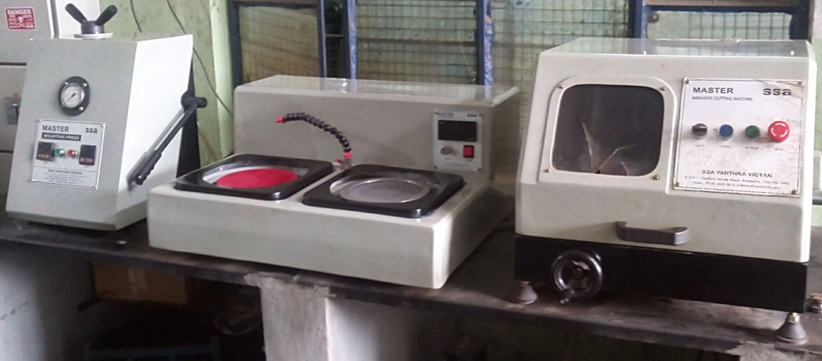

Micro Vickers and Sample Preparation Machines
Testing · Metallographic lab

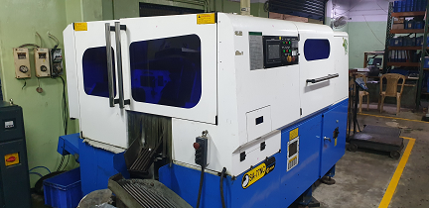

Circular Saw Cutting Machine (SOCO SA-77NC)
CNC cutting · Bar stock

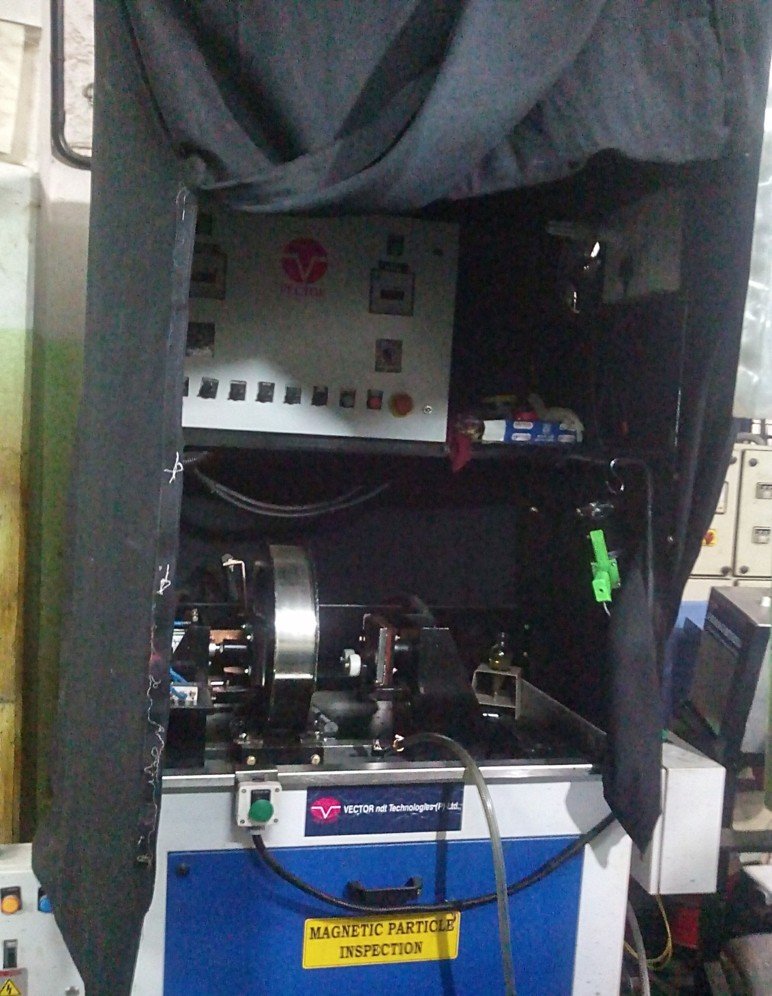

Magnetic Particle Testing Machine
List of Instruments 12 instruments
| Sl | Description | Make | Year | Spec | Qty |
|---|---|---|---|---|---|
| 1 | Profile projector | Metronics | 2008 | 0.001 LC | 1 |
| 2 | Micro Vickers hardness tester | Wilson | 2015 | 0.1HV to 1HV | 1 |
| 3 | Magnetic particle testing machine | Vector | 2015 | 300mm max | 1 |
| 4 | Rockwell hardness test machine | Krystal Elmec | 2005 | 62 and 150 load | 1 |
| 5 | Surface table | Jajuji | 2008 | 630 x 630mm | 1 |
| 6 | Admit between centres | GMF | — | 500mm | 1 |
| 7 | Air gauge (special purpose) | Baker | 2022 | 0.001mm | 1 |
| 8 | Surface finish tester | Mitutoyo | 2011 | — | 1 |
| 9 | Cutoff machine for sample preparation | Easina | 2015 | — | 1 |
| 10 | Polishing machine | Easina | 2015 | — | 1 |
| 11 | Sample mounting press | Easina | 2015 | — | 1 |
| 12 | Eddy current metal sorter | Vibrant NDT | 2020 | — | 1 |
All other instruments maintained as per requirement of part criticality.
Photo Gallery 18 entries
POLYGON MILLING MACHINE
CNC SHOP FLOOR

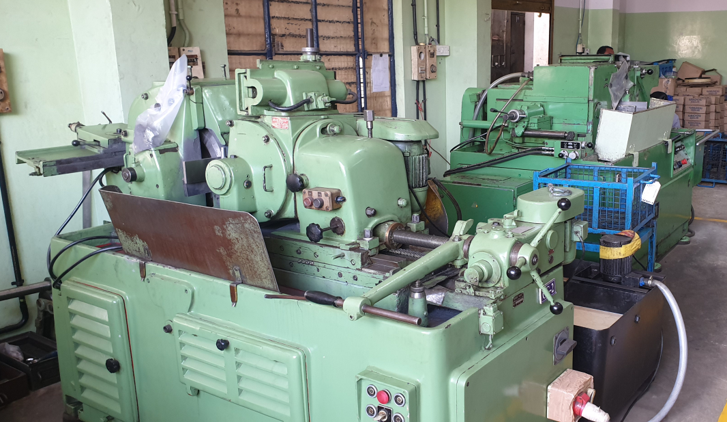

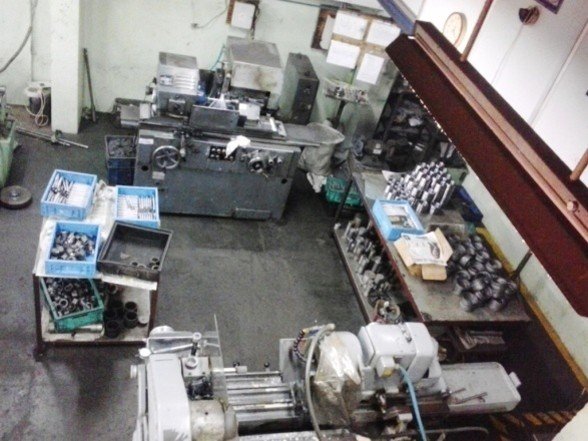

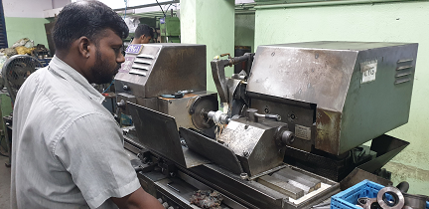

GRINDING SECTION
Enquire About Our Manufacturing Capabilities
We produce high-precision components for automotive, aerospace and industrial applications.
